In the field of modern industrial and commercial construction, steel structure has become a mainstream structural form due to its exceptional strength, rapid construction speed, and flexible design adaptability. When combined with Rockwool Sandwich Panels, a complete building envelope system with outstanding performance and complementary advantages is created. As a professional building materials manufacturer and exporter, HUATAI deeply understands the value of this synergistic effect, providing the global market with high-quality metal-faced insulated sandwich panel solutions that perfectly match steel structures. This article delves into how rock wool sandwich panels empower steel structure buildings to achieve multiple goals of safety, energy efficiency, and economy.
Rock Wool Sandwich Panels: The “Intelligent Skin” Tailored for Steel Structure Buildings
The steel frame provides the building’s “bones,” while the envelope walls and roof are its “skin.” As this skin, the performance of Rockwool Sandwich Panels directly determines the building’s insulation, fire resistance, soundproofing, and durability. Their integration with steel structure is not a simple addition but a systematic combination.
Analysis of Core Synergistic Advantages
- Exponential Enhancement of Fire Safety: This is the most core and irreplaceable advantage of the combination.
- Weakness of Steel Structure: While steel is non-combustible, it rapidly loses strength at high temperatures (above approximately 550°C), yielding and deforming, leading to structural collapse. Fire protection is crucial.
- Rock Wool’s Solution: The core material of Rockwool Sandwich Panels is a Class A1 non-combustible material. When used as walls or roofs, it not only isn’t a source of fire but also effectively blocks flames and high temperatures from transferring to the steel structure in the early stages of a fire, buying valuable time for firefighting and evacuation, and protecting the primary structure. For high-risk buildings like chemical plants, warehouses, and data centers, using rock wool wall panels is key to meeting fire codes and protecting assets.
- Exceptional Thermal and Energy Performance:
- Steel structure buildings have many metal components prone to creating thermal and cold bridges. Rockwool Sandwich Panels, as a continuously covered insulation layer, effectively envelop the steel structure, significantly reducing heat loss through purlins, beams, and columns.
- The rock wool fiber structure is stable, with extremely low degradation in insulation performance over long-term use, ensuring the building maintains stable low energy consumption throughout its lifecycle, perfectly supporting green building and low-carbon goals.
- Efficient Construction and Schedule Advantages:

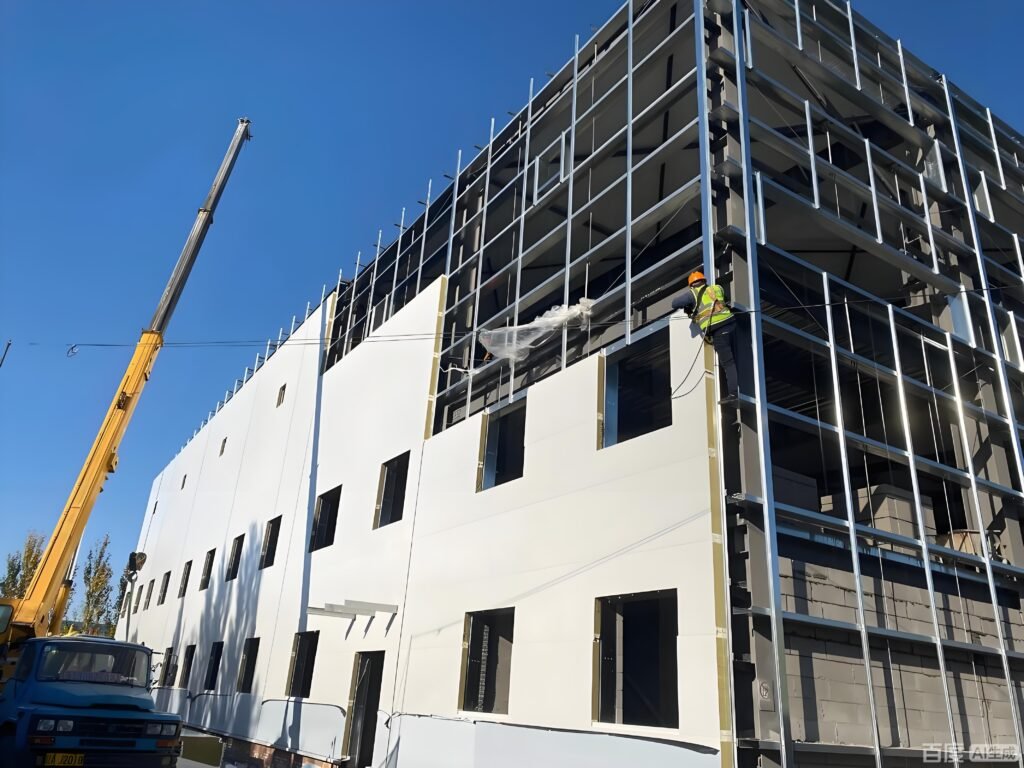

- Simultaneous Construction, Extreme Speed: While or shortly after the main steel structure is erected, rock wool sandwich wall panels and roof panels can be installed on a large scale. The panels are large-sized and lightweight (compared to masonry), installation is like “building blocks,” uses dry construction, is less affected by weather, and can shorten the total construction period by 30%-50%.
- Reduced Cross-Trade Work: Traditional construction requires multiple steps (structure, masonry, insulation, finishing), whereas the sandwich panel system completes everything in one step, simplifying management and making quality easier to control.
- Excellent Durability and Low Maintenance:
- HUATAI‘s rock wool sandwich panels use high-strength Alu-Zinc steel sheets as facings, offering strong corrosion resistance and a design lifespan similar to the main steel structure.
- The entire system has good weather resistance, does not peel or flake, and requires only simple cleaning for daily maintenance, significantly reducing long-term upkeep costs.
- Good Building Physics Performance:
- Sound Insulation: The porous structure of rock wool effectively absorbs sound waves, creating a quiet indoor environment for factories, offices, and stadiums.
- Hydrophobicity: High-quality rock wool core material has good hydrophobic properties, avoiding internal condensation and protecting steel components from moisture corrosion.
Application Practices in Different Types of Steel Structure Buildings
1. Large Industrial Plants and Logistics Warehouses
- Needs: Large spans, rapid construction, strict fire compartmentalization, controlled internal environment (e.g., constant temperature/humidity warehouses).
- HUATAI Solution: Use large-size (e.g., 1000mm wide) Rockwool Sandwich Panels with concealed connection systems to form smooth, aesthetically pleasing walls and roofs with excellent fire performance. For areas with cold rooms, thicker cold room panel systems can be seamlessly integrated.
2. Commercial Complexes and Public Buildings (Stadiums, Exhibition Centers)
- Needs: Modern appearance, high energy efficiency requirements, high occupancy, high fire rating.
- HUATAI Solution: Provide rock wool panels with various surface coatings (e.g., PVDF) in rich, long-lasting colors. Can be combined with metal carved panels (decorative insulated panels) for partial facades to enhance architectural artistry while meeting insulation and fire requirements.
3. Clean Rooms and High-Tech Facilities
- Needs: Extreme cleanliness, fire safety, dust-free/sterile environment, smooth, easy-to-clean panel surfaces.
- HUATAI Solution: Supply specialized cleanroom rock wool panels with special coatings (e.g., antibacterial),精密 joint design ensuring airtightness, fully compliant with standards like GMP.
4. Perimeter Firewalls and Blast Walls
- Needs: Dividing different risk zones within steel structure plants to prevent fire and explosion spread.
- HUATAI Solution: Rockwool Sandwich Panels are ideal for constructing firewalls and blast walls, capable of providing fire ratings of 2 hours, 3 hours, or higher as required.
Key Technologies and Installation Essentials
To ensure system performance, the following points are critical:
- Purlin Design and Connection: Purlin spacing must be calculated based on panel thickness and load. HUATAI provides specialized concealed or exposed connectors to ensure secure attachment and reduce thermal bridging.
- Joint Sealing: Horizontal and vertical joints of wall and roof panels must be sealed with specialized sealants and caps for airtightness and water tightness, key to long-term system performance.
- Thermal Bridge Prevention: Use thermal break pads at connections between panels and steel structure, and ensure continuity of the insulation layer.
- Detail Design Development: Details like eaves, corners, and openings for doors/windows require pre-development. HUATAI provides matching flashings and trims to ensure overall aesthetics and functionality.
HUATAI’s Integrated Service Advantage
As a leading factory from China, HUATAI not only provides high-quality Rockwool Sandwich Panels but also adds value to steel structure building projects:
- Systematic Product Supply: One-stop provision from main panels to all supporting accessories (connectors, sealants, flashings), ensuring system compatibility.
- Technical Support and Drawing Development: Our engineering team can assist with envelope system drawing development, providing structural and thermal calculation support.
- Global Supply Chain Management: We are experienced in international logistics, ensuring bulk panels and steel components arrive at global construction sites synchronously or as needed, safeguarding project progress.
The combination of Rockwool Sandwich Panels and steel structure represents an advanced direction in modern industrialized construction. It is not merely a material combination but a fusion of core values: safety, efficiency, and sustainability. Choosing HUATAI as your envelope system partner means choosing a reliable expert with deep understanding in material science, building physics, and global project delivery.
